网箱托盘厂家供应折叠式网箱托盘、金属网箱托盘、钢制网箱托盘、网格料箱、网式托盘、箱式托盘、仓储笼等产品，结构稳固、可折叠省空间、堆叠稳定、承载可靠，适用于仓库、车间、物流等场景，满足工业物料存储与周转需求。
wire mesh box pallet, foldable wire container, collapsible storage cage, steel pallet cage, metal mesh pallet box, heavy duty wire cage, galvanized storage bin, stackable mesh container are industrial storage solutions made of welded steel wire and sturdy frames. these products feature foldable designs for space saving, stackable structures for high density storage, and galvanized surfaces for corrosion resistance. suitable for forklift handling, they are widely used in warehouse storage, logistics transportation and industrial material handling, providing reliable organization and efficient space utilization for various industries.
a
网箱托盘作为常用仓储设备，涵盖折叠式网箱托盘、金属网箱托盘、钢制网箱托盘、网格料箱、网式托盘、箱式托盘、仓储笼等多种类型，以金属材质打造，结构牢固、通风可视、可堆叠可折叠，适配叉车与货架使用，广泛用于工业散件、零部件、五金物料的存储、周转与运输，助力企业优化仓储空间、提升物流作业效率。
网箱托盘是四面有网片的托盘，有的箱体上有顶网，有的没有顶网。
网箱托盘的网板有固定、折叠式、可拆卸下式三种。
网箱托盘的四周栏网是采用网式结构。
网箱托盘防护能力比较强，可防止塌垛和货损；可装载异型不稳定堆码的货物。
网箱托盘是在平托盘基础上发展起来的，多用于散件或散状物料的集装，金属网式托盘还用于热加工车间集装热料。一般下部可叉装，上部可吊装，并可堆垛。
箱式托盘四周采用角钢焊接而成，在底部采用波纹板或网片焊接，在波纹板反面含有加强筋增加网式托盘的承载。
网箱式托盘表面采用环氧树脂粉喷塑，有附着力比较强、外型美观的特点涂层厚度可达60-80微米，固化温度180℃。金属表面酸洗、磷化处理，表面美观，充分保证表面质量。
◇目前该产品已出口国外,欢迎订购箱式托盘。
◇颜色通常有：浅灰色、宝蓝色、橘红色。也可以根据企业要求定做指定颜色。
箱式托盘常用的规格有：
800*600*640 承载：1000KG/1500KG
1000*800*500 承载：1000KG/1500KG
1000*800*840 承载：1000KG/1500KG
1200*1000*890 承载：1000KG/1500KG
带导向折叠式网箱托盘
移动式网箱托盘

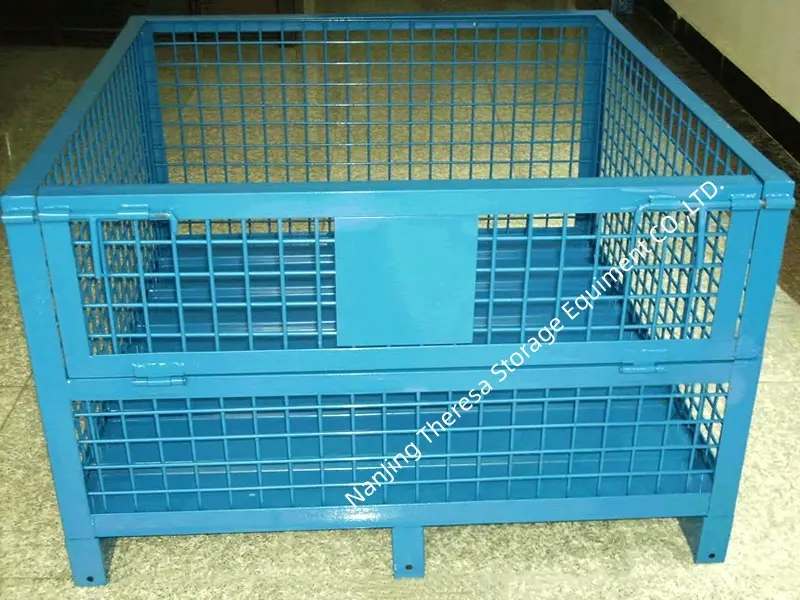

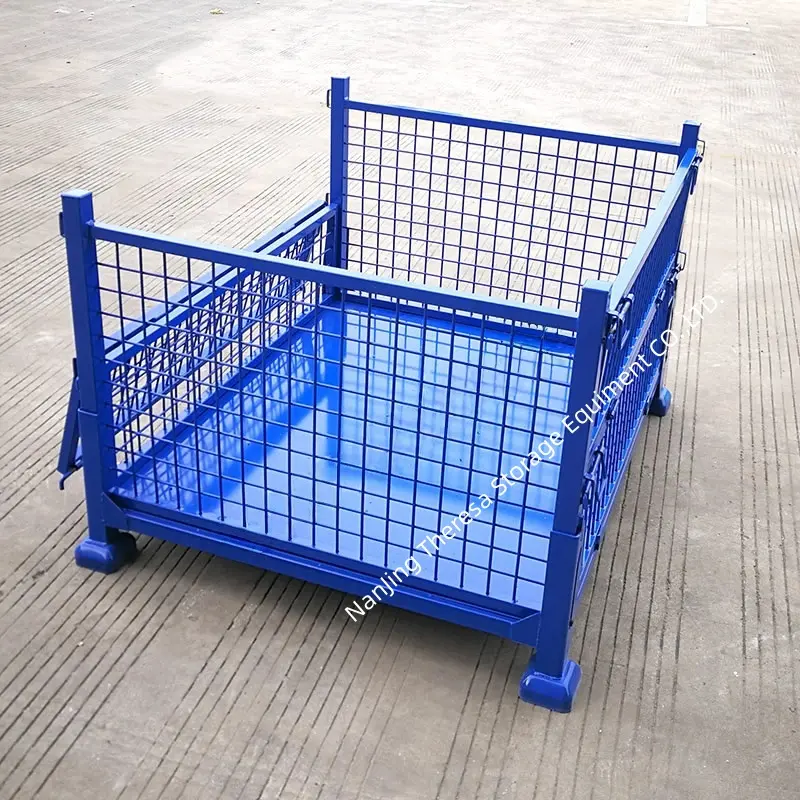

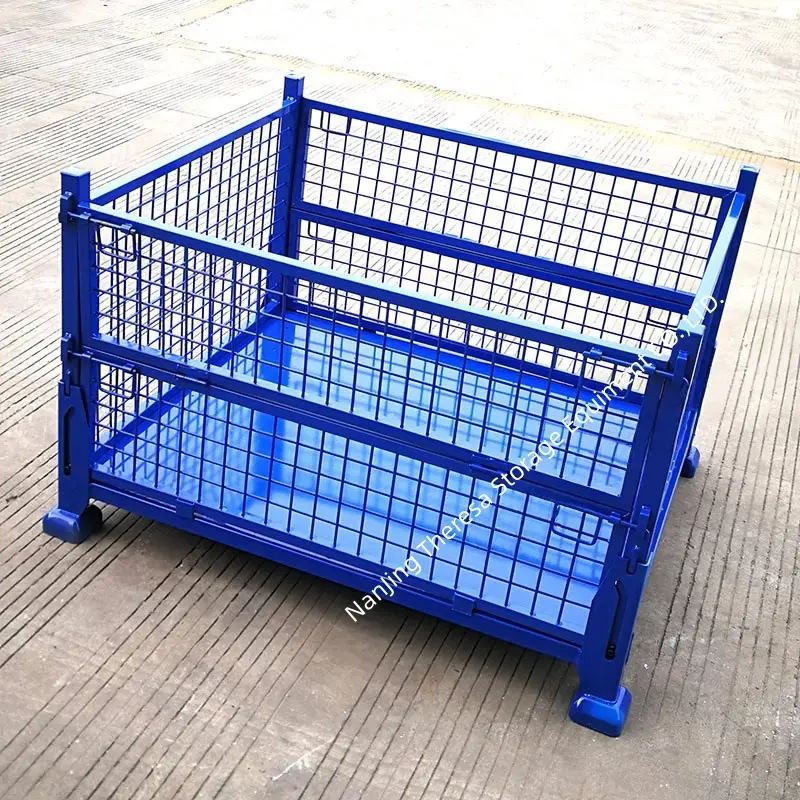

折叠式网箱托盘半开门结构

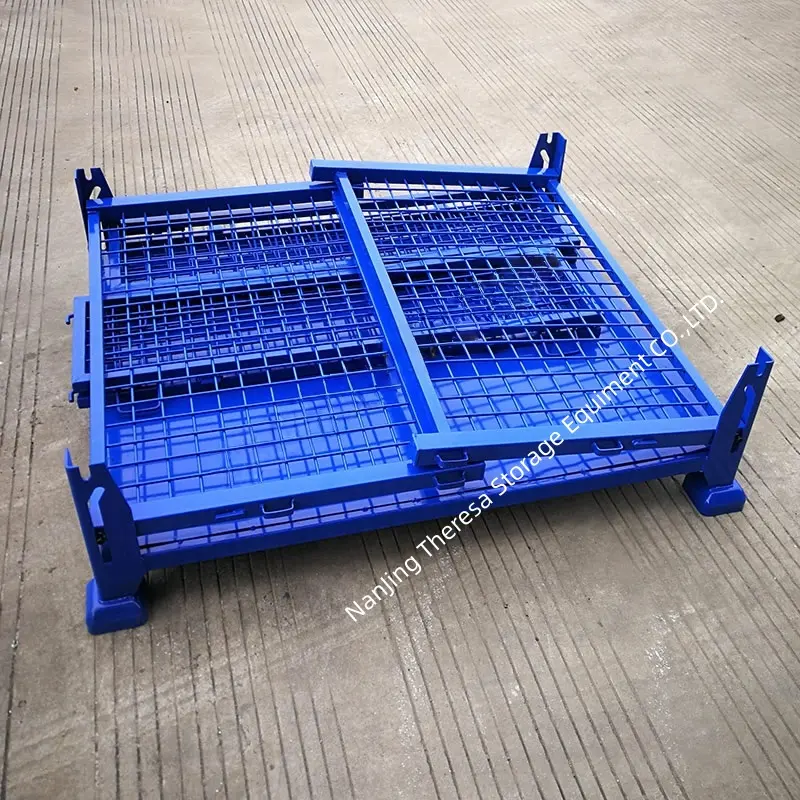

折叠式网箱托盘折叠后的效果

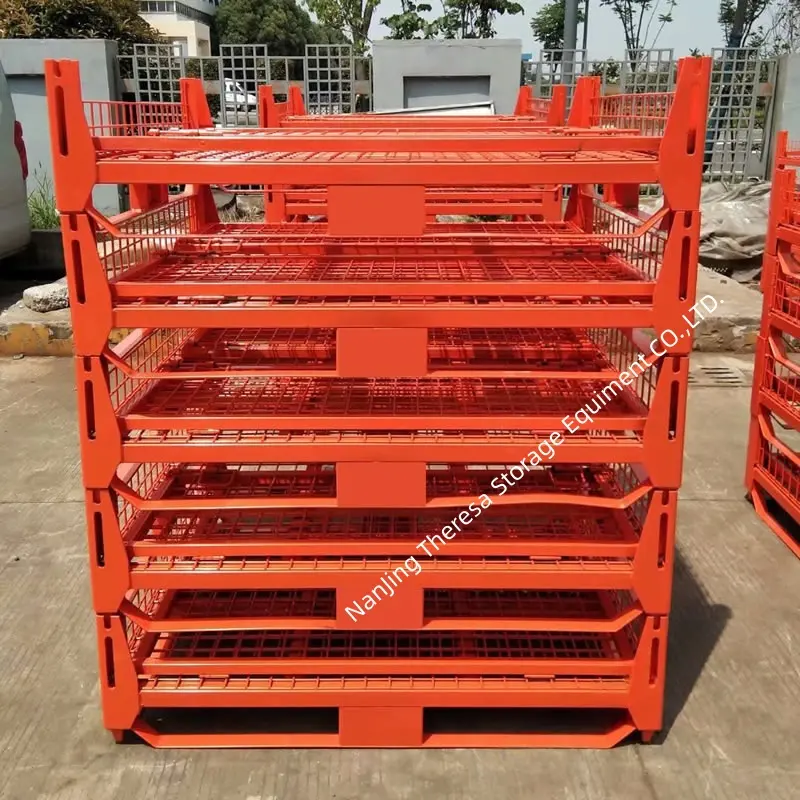

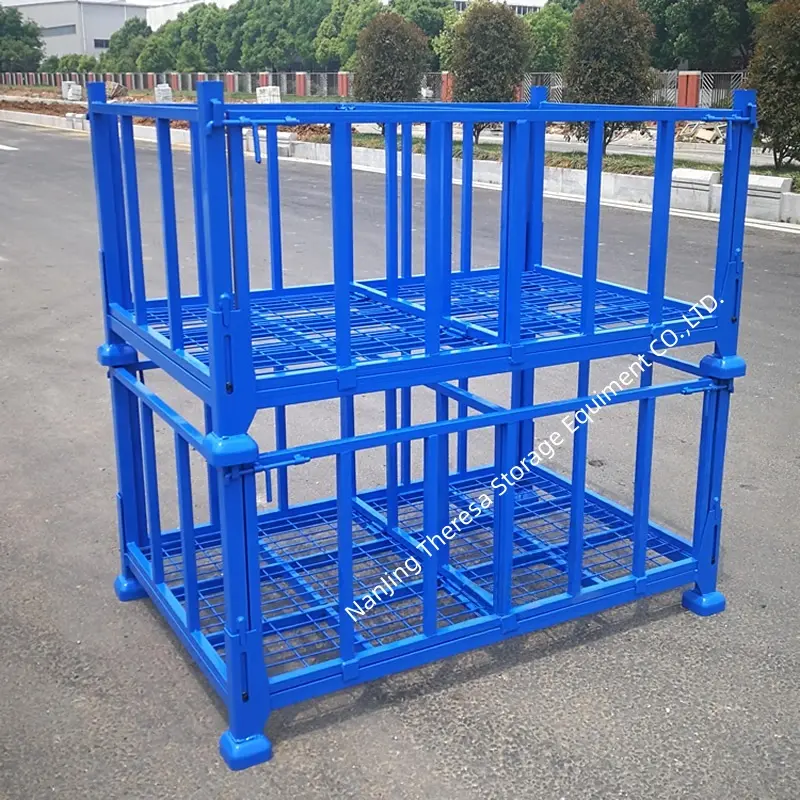

折叠式网箱托盘堆码效果
折叠式网箱托盘（底部为网式结构）

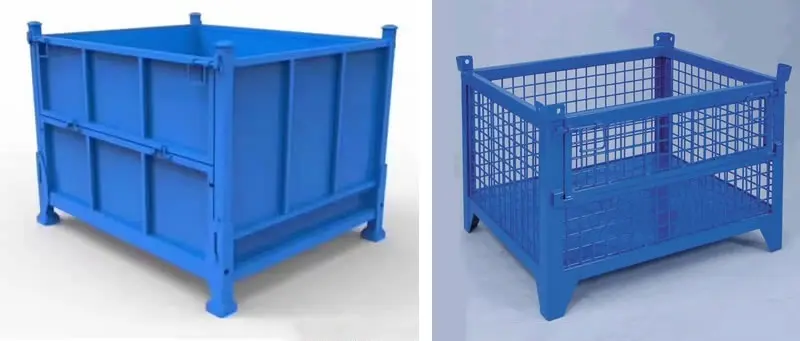

折叠式箱式托盘/固定式网箱托盘
四周镂空中间分隔式折叠式式网箱托盘

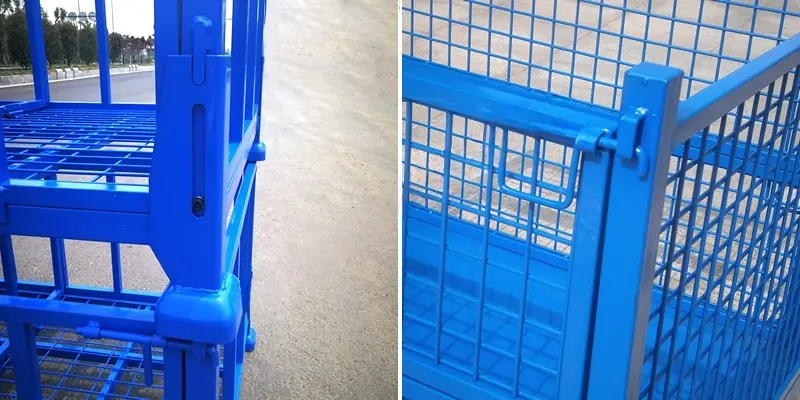

折叠式网箱托盘堆码效果及把手结构
固定式网格料箱
固定网箱
a cage tray is a type of pallet with mesh panels on all sides. some units come with a top mesh cover while others do not.
cage tray mesh panels are available in three styles fixed, foldable and detachable.
the side enclosures of cage trays use a sturdy mesh structure.
cage trays offer high level protection to prevent stack collapse and cargo damage, ideal for storing irregular shaped and unstable goods.
developed from standard flat pallets, cage trays are widely used for handling bulk materials. metal mesh trays can also store hot materials in heat processing workshops. they support forklift access at the bottom, crane lifting at the top and safe stacking.
box pallets are built with welded angle steel frames, and the base uses corrugated plates or mesh panels. corrugated plates are designed with rear reinforcing ribs to improve load bearing capacity.
mesh box pallets feature epoxy resin powder coating with strong adhesion and attractive finish. the coating thickness reaches 60 80 microns with a curing temperature of 180°c. metal surfaces undergo pickling and phosphating treatment to ensure long lasting surface quality and appearance.
our products are exported to global markets, and custom orders for box pallets are always welcome.
standard colors include light gray, royal blue and orange. custom colors are available based on customer requirements.
common specifications for box pallets are as follows:
800 * 600 * 640 load capacity 1000kg 1500kg
1000 * 800 * 500 load capacity 1000kg 1500kg
1000 * 800 * 840 load capacity 1000kg 1500kg
1200 * 1000 * 890 load capacity 1000kg 1500kg
folding cage tray with guide rails
mobile cage tray
folding cage tray with half door structure
folded state of folding cage tray
stacking effect of folding cage tray
folding cage tray with mesh base structure
folding box tray fixed cage tray
folding cage tray with hollow side and middle partition
stacking effect and handle structure of folding cage tray
fixed grid box
fixed cage
